Core equipment for tomato sauce processing plants:
Revitalize your tomato sauce processing plants with our customized tomato paste processing line, a highly flexible solution built to optimize operations for facilities producing tomato juice, traditional tomato sauces, and innovative tomato-based products. This versatile system also serves as a high-efficiency spicy tomato sauce production line, enabling smooth integration with existing juice processing setups in tomato sauce processing plants. It supports the full production of tomato juice, paste, and sauce within one unified process.
For tomato sauce processing plants looking to expand their product portfolio, this multifunctional line removes the need for extra equipment investment, unlocking new market opportunities in spicy condiments and tomato beverages. With customizable and scalable capacity configurations, it is ideal for tomato sauce processing plants of all sizes—from small-batch artisanal spicy sauce production to large-scale manufacturing of tomato paste and fresh tomato juice. This ensures stable performance and reliable scalability to meet all your production demands.
Complete Production Process
FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Key Features
- Food-grade 304 stainless steel construction meeting FDA/CE standards
- Intelligent temperature control (±1℃ precision) for consistent quality
- Energy-saving design reducing operational costs by 25-30%
- Customizable capacity from 500kg/h to 10t/h
- PLC smart control system for automated operation
- Easy-to-clean structure with minimal maintenance requirements
- Versatile for various sauce types and packaging formats
Technical Specifications
| Product Name |
One-stop solution for tomato processing line |
| Fresh Fruit Input Capacity |
500kg per hour ~ 25 tons per hour |
| Raw Material |
Fresh tomato, tomato paste |
| End Product |
Tomato paste, tomato sauce or ketchup, tomato juice, etc |
| Final Product Brix |
28%~30%, 36%~38% |
| Main Machine Material |
Food grade SUS304 or SUS316 |
| Warranty |
12 months after commissioning |
This state-of-the-art tomato paste processing line integrates multiple operations, focusing on the complete tomato processing journey from initial raw material treatment to final product packaging. As a versatile production system, this line efficiently manufactures various tomato-derived products including tomato paste, tomato sauce, and tomato juice, spanning all essential processing stages.
Raw Material Preparation

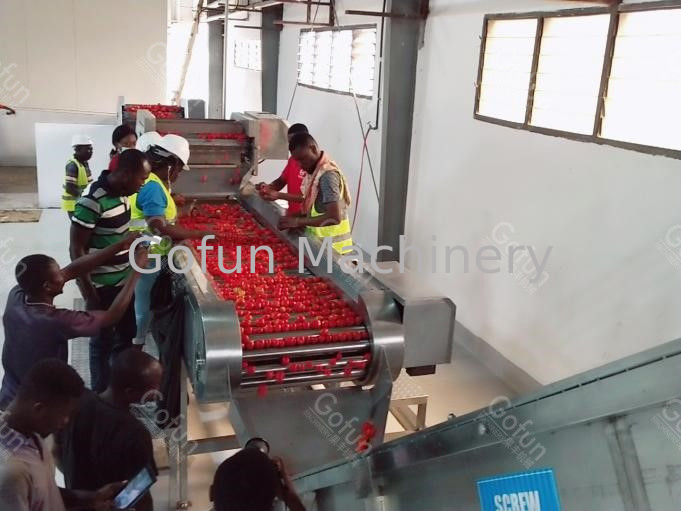

The system includes comprehensive screening and cleaning components, where a vibrating screen eliminates flawed tomatoes and impurities while a high-pressure bubble cleaning machine with brush rollers thoroughly cleanses surfaces by removing mud, pesticide residues, and unwanted particles. Flexible conveying mechanisms prevent damage to tomato skins, establishing a pristine base for processing.
Crushing and Pulping
Following pretreatment, tomatoes are processed through a spiral crusher in low-temperature settings to retain nutrients and flavor. A double-stage pulping machine separates tomato pulp from peel and seeds, with the first stage eliminating larger impurities and the second stage providing fine pulping for desired consistency.
Concentration and Sterilization
Tomato pulp undergoes concentration in a vacuum concentration tank where excess water is extracted in a low-temperature vacuum environment (60-70°C). Solid content is concentrated between 10% to 30% as per specifications, preserving lycopene and essential nutrients. Concentrated pulp proceeds to tubular sterilizer using rapid high-temperature sterilization (121°C instant sterilization) to eradicate microorganisms while preventing flavor degradation.
Final Product Packaging
Sterilized tomato products are meticulously dispensed into packaging containers through an aseptic filling system maintaining an aseptic environment to prevent secondary contamination. Capping, sealing, labeling, coding, and boxing complete the packaging process, with some lines incorporating metal detection and weight detection systems to eliminate substandard products.
Final Products & Packaging
Available Packaging Options
- Aseptic bags
- Metal cans
- Sachets
- Stand-up pouches
- PP containers
- Glass bottles
- PET bottles
- Gable tops
Comprehensive Solutions
Technical Support
- Technical consultation
- Customized proposal design
- Equipment manufacturing
Implementation Services
- Installation, commissioning, and on-site training
- One-year after-sales guarantee
- Lifelong service
Additional Support
- Package design and purchasing support
- Marketing suggestions
- Factory building and design
After-Sales Service
- Debugging equipment
- Overseas technical support
- Overseas equipment maintenance
- English speaking engineers available
